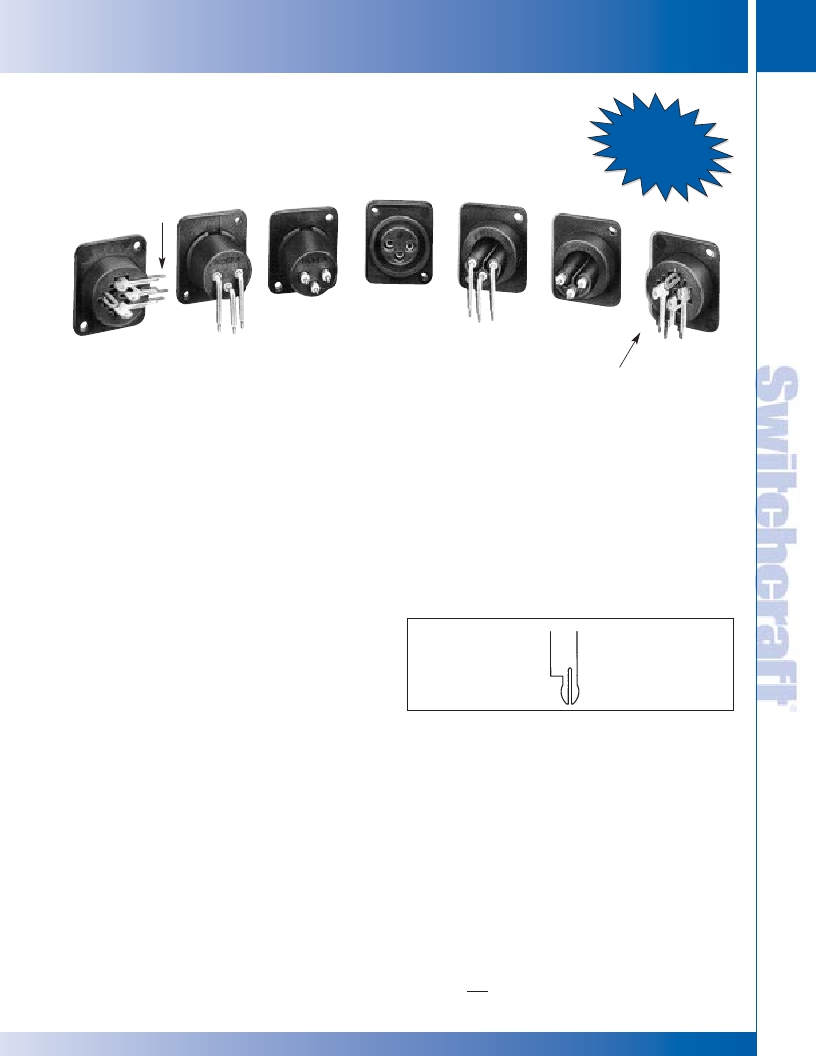

Q-G ? AUDIO RECEPTACLES FOR PC/PANEL MOUNT
PD SERIES - PLASTIC PANEL MOUNT
NEW
Bifurcated
PCB Terminals
PD3FS2
ex
n
w g
r
PD3MS1
PD3FRML1
PD3FRL1
PD3MRML1
PD3FS2
PD3FRA1
Bifurcated
PCB Terminals
Switchcraft offers the PD Series (plastic panel mount) audio
connectors with a wide variety of 3-pin/contact, male and
female types and many terminals for combined PC/panel
mount. Female types offer larger contact area for higher ratings
and longer life. Panel mounting may be at users option, either
front or rear. New PD series connectors mate with Switchcraft
Q-G and other compatible types.
PD SERIES FEATURES
SPECIFICATIONS
Housing: Black molded thermoplastic, glass-filled.
Ground Pin: Copper alloy.
Stamped Terminals/Contacts: Copper alloy, electrotinned.
Screw Machine Terminals/Pins: Copper alloy, silver-plated.
BIFURCATED PC TERMINALS
Bifurcation configuration for PC terminals on selected
connectors offers these advantages.
?
?
?
?
?
?
3 pins/contacts
Male and female
Straight and right-angle terminals
PC or PC/panel mount
Front or rear panel mount
Special PC/solder terminal type with exits at 0° (down,
1. Provides convenient snap-in retention for mounting.
2. Holds connector securely to PCB during wavesoldering.
3. Adds strength to all terminal connections by solder
“wicking” through PCB and up sides of terminals.
90° (right), 180° (top), and 270° (left)
? Rugged molded black glass-filled thermoplastic housings.
BIFURCATED HOLD-DOWN FEATURE
FOR ALL PC TERMINALS
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
